Indoor / hard standing
Genie GS-3246 Electric Scissor Lift
Genie GS-3246
32ft electric scissor lift, 11.75m working height, 318kg — the workhorse electric deck for high indoor access.
Working height
11.75 m
Platform height
9.75 m
Power
Electric
Width
1.17 m
Specification sheetDownload Specification sheet
Overview

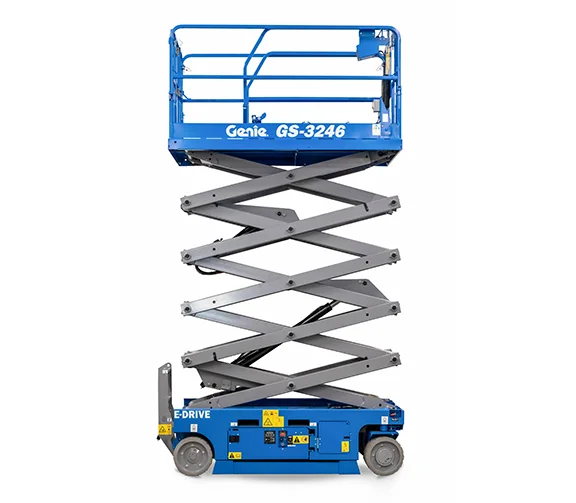

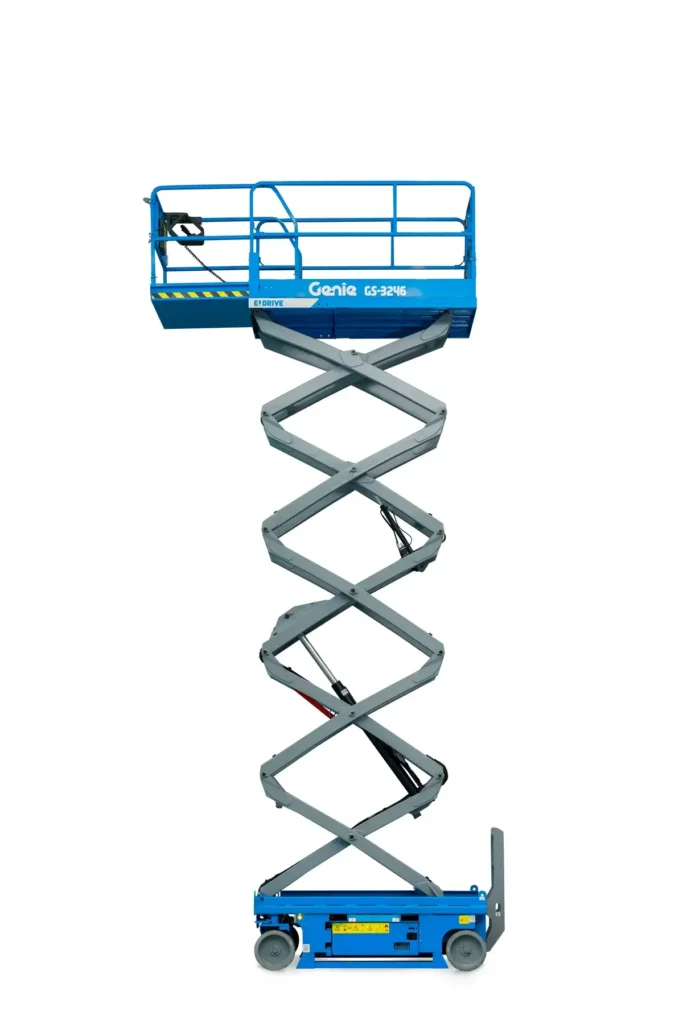

About the Genie GS-3246 Electric Scissor Lift
The Genie GS-3246 is a 32ft electric scissor lift: 11.75m working height, 9.75m platform height and 318kg lift capacity, with 113kg on the 0.91m slide-out extension deck. The 2.26 x 1.15m platform sits on a 1.17m wide chassis and folds down to 2.39m for transport. 24V power (four 6V 225Ah batteries), SmartLink two-speed lift and drive, solid non-marking 15x5x11in tyres, 25% gradeability and a 2.29m outside turning radius. Two people indoors, one outdoors.
Where it works
Best-fit jobs and sites
- High racking and warehouse work, tall internal fit-outs, services and maintenance at height on firm floors.
Good to confirm: Outdoor occupancy is one person. Non-marking tyres and 25% gradeability — hard standing only. An online listing cannot replace a site assessment, so tell us the job and we will confirm suitability.
Specifications
Full specifications
Grouped for quick scanning — a row appears once its figure is verified for this machine. The manufacturer spec sheet always takes precedence.
Reach & platform3 specs
- Working height
- 11.75 m
- Platform height
- 9.75 m
- Extension deck
- 0.91m slide-out, 113kg
Capacity1 spec
- Platform capacity
- 318
Dimensions2 specs
- Overall width
- 1.17 m
- Turning radius
- 2.29
Performance4 specs
- Gradeability
- 25
- Terrain type
- Indoor / hard standing
- Indoor use
- Yes
- Outdoor use
- Limited
Power & drive4 specs
- Power source
- Electric
- Battery
- 24V (four 6V 225Ah batteries)
- Drive type
- 2WD
- Tyre type
- Non-marking solid
Machine & transport4 specs
- Manufacturer
- Genie
- Model
- GS-3246
- Customer pickup
- Delivery only
- Delivery
- Quoted by suburb & access
Dimensions at a glance
The numbers that decide access
- Machine width
- 1.17 m: needs double doors or gate access
Drawn to scale from this machine's stored specifications. The manufacturer spec sheet (below) governs.
Delivery, access and running
Delivery is quoted by suburb, site access and transport requirements. Tell us the tightest access width on site if the machine must pass through gates, doorways or between structures.
Licence and competency: Scissor-type EWP. No high-risk work licence required in NSW; EWPA Yellow Card (SL) accepted competency.
Hire period: Hire runs from delivery or pickup until off-hire is confirmed. Rates are quoted for your dates, suburb and machine together; see our hire terms for responsibilities during the hire.
Charging this machine
- Batteries
- 24V (four 6V 225Ah batteries)
- Our fleet guidance
- Charge overnight (about 8 hours) from a standard outlet for a full day's work. Runtime depends on battery condition, drive distance and lift cycles. Ask us if your job runs long shifts.
- Confirm a live, accessible power outlet near where the machine parks each night. A machine left away from power starts tomorrow flat.
- Plug in at the end of every shift, not "when it gets low"; opportunity charging at breaks helps on heavy days.
- Charge in a ventilated area and keep the charger connections dry.
Pre-start checks, every day
Every Equip Hire machine is function-tested before delivery, and every operator still checks the machine before each shift. This is the baseline we use; the machine's own logbook and check sheet govern.
Walk around
- Tyres, wheels and structure: damage, cracks, leaks
- Scissor stack / boom, pins and hoses: no visible damage or hydraulic leaks
- Decals, capacity plate and rails in place; gates close properly
- Work area: overhead power lines, holes, slopes, other traffic
Power on
- Battery state of charge: enough for the shift
- Ground and platform controls both operate correctly
- Emergency stop and horn work from both stations
Function test
- Raise, lower and drive at low height before working
- Emergency lowering: know where it is and that it works
- Tilt / overload alarms not showing faults
Any fault: tag it out and call us on 0472 721 234. Do not operate a machine with a known fault. Based on manufacturer pre-start requirements and SafeWork NSW guidance.
Before it arrives
- Measure the route, not the door. Every gate, corridor and lift on the way to the work area: handles, hinges, bollards and stored materials all eat clearance.
- Confirm the floor. Ground-bearing slab is fine; suspended slabs, mezzanines and raised floors need the wheel loads checked against the floor rating.
- Clear the work zone. Overhead services, sprinkler heads and light fittings at working height; exclusion for people below.
- Delivery space. Room for the truck to stop and unload safely. Tell us about docks, driveways and height limits when you book.
- Power point. A live outlet near overnight parking, so every day starts charged.
Mistakes we see weekly
- Booking on ceiling height instead of the actual task height. Measure to the work, then add nothing "just in case".
- Quoting the nominal door size instead of the clear opening. An 820 mm door leaf are not 820 mm once the door stop is counted.
- Assuming the machine can cross "a bit of lawn". Wheeled machines rut turf and bog in soft ground; say so and we'll send tracks.
- Leaving induction and permit requirements to delivery morning. Shopping centres and managed sites need paperwork before the truck arrives.
