Rough terrain / 4WD

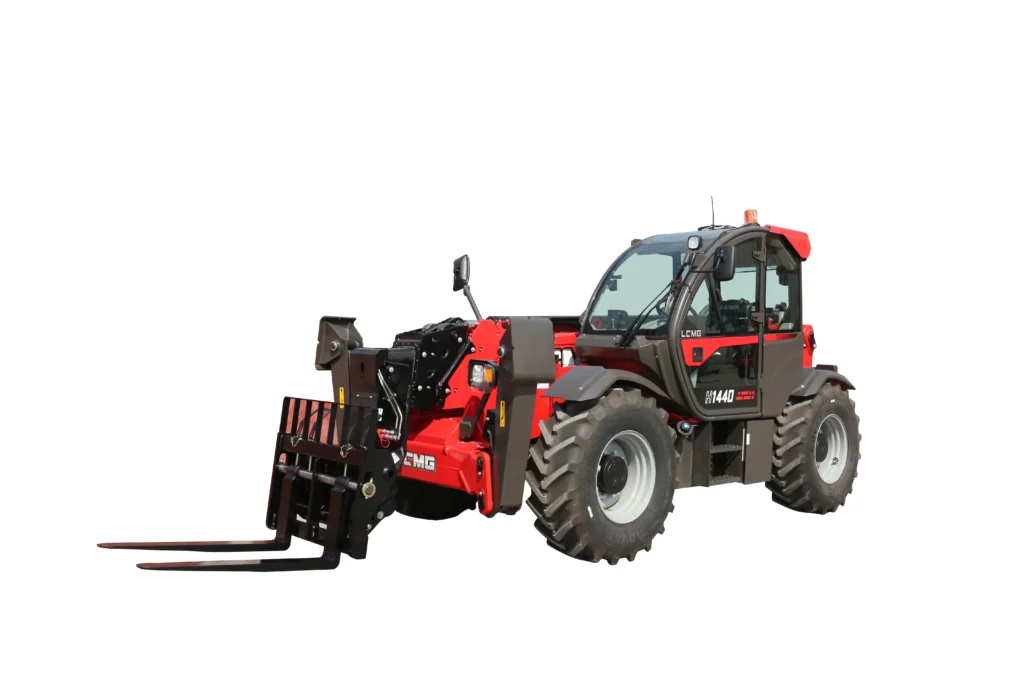

LGMG H1440
4 tonne telehandler. 13.6m lift height, 9.22m outreach, hydraulic outriggers, four-wheel drive and four-wheel steer. Perkins diesel, 12,050kg, float delivery.
Machine availability and transport are confirmed as part of your quote. An enquiry is not a booking.
Overview

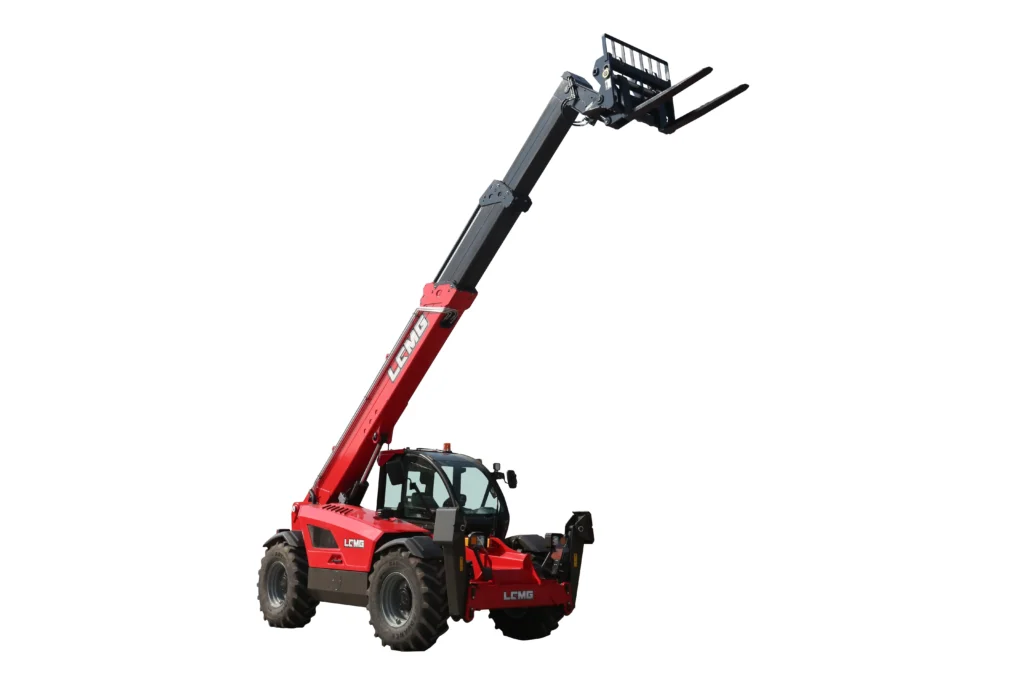

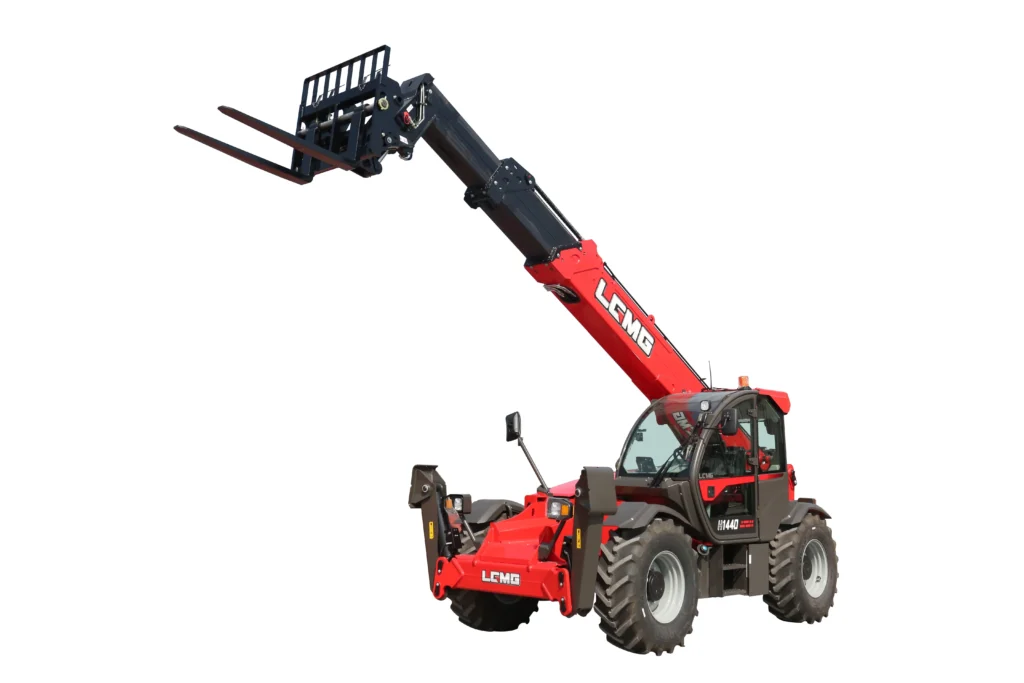

The LGMG H1440 is the high-reach telehandler in the Equip Hire fleet: 4,000kg rated capacity to a 13.6m maximum lift height, with 9.22m of horizontal outreach and hydraulic outriggers to steady the chassis for reach work. Four-wheel drive and four-wheel steer with a 4.2m turning radius keep a 6.08m long machine workable on site; frame tilt of plus or minus 9 degrees levels the load, and 65% gradeability handles unformed access tracks. A 74.5kW Perkins diesel drives four forward gears to 30km/h and three reverse gears to 20km/h, stopping in 5.5m or less from 20km/h unladen. The manufacturer publishes two load charts, outriggers fully open and outriggers not open, so plan every lift on the chart that matches how the machine will be set up. It weighs 12,050kg and is 2.44m wide on 440/80R24 tyres. Every figure is taken from the LGMG H1440 specification sheet held on file.
Decision panel
Seven questions, answered from this machine’s verified specifications. 8 still to confirm with the hire team.
A Confirm mark means the decisive figure is not on this record. Send us the site details and we will answer it before quoting; we never guess a specification.
Specifications
Grouped for quick scanning. A row appears once its figure is verified for this machine; anything not listed here is not yet on the record, and the Fit & access panel above marks it Confirm. The manufacturer spec sheet always takes precedence.
Transport
Swipe
Quoted by suburb, machine and access. We plan the truck, the unloading space and any overhead hazards before the run, tell us about docks, tight driveways and height limits when you book.
Customer pickup has not been confirmed for this machine. Delivery is always available and is quoted together with the hire; if you would rather collect, ask the team and they will confirm whether a trailer combination is approved for it.
Logistics
What we need from you, and what we take care of.
Swipe
Quoted by suburb, site access and transport requirements, the machine and the delivery are quoted together for your dates.
Tell us the heaviest load, how high and how far it has to go, and what the ground is like. We read the load chart for the attachment and confirm the machine before it is loaded.
Hire runs from delivery or pickup until off-hire is confirmed. Rates are quoted for your dates, suburb and machine together, see our hire terms for responsibilities during the hire.
Send your suburb, your dates and the tightest access width. We will confirm the machine and quote the delivery with it.
Safety
A telehandler is checked as a load-handling machine, not as a work platform. The load chart for the attachment fitted decides what it may lift.
Swipe
Tag it out and call us on 0472 721 234. Never operate a machine with a known fault, we will repair or swap it.
Ticking here is a memory aid on your phone, nothing is stored. The machine’s own logbook and pre-start check sheet are the record. Based on the manufacturer’s daily check requirements and SafeWork NSW guidance for this kind of equipment.
Site prep
A telehandler is judged on the load chart and the ground. Sort both before it arrives.
Swipe
Weight, height and reach together decide what this machine can place. Have the heaviest load and the furthest placement written down before it arrives.
Compacted and trafficable, with the bearing capacity for a loaded machine. Mark trenches, pits and services, and keep the boom out of the exclusion zone for power lines.
Room to level the frame where loads are placed, and a zone nobody walks through under a suspended or raised load.
Room for the truck to stop and unload safely. Tell us about gates, height limits and steep access when you book.
Forks as standard. If you need a different attachment, tell us at booking so the right load chart travels with the machine.
Avoid
The things that most often send a machine back or hold up a job.
Swipe
The maximum rated load is at minimum height and reach. At full extension the chart figure is a fraction of it.
Boom retracted and low to travel. A raised boom on a slope or soft ground is how these machines tip.
A telehandler lifts materials. Lifting people needs an approved work-platform attachment and the operator competency that goes with it.
Managed sites need the paperwork approved before the truck arrives.
Telehandlers
Long-term hireFrom $190/day on 3+ month hire
Compact 2.5 tonne telehandler. 5.94m lift height, 3.41m outreach, 1.86m wide and 1.97m high for gateways and hoardings.
Telehandlers
Long-term hireFrom $190/day on 3+ month hire
2.5 tonne telehandler with a 5.78 m lift height and 3.25 m forward reach. A compact fixed boom machine for residential and fit-out sites.
Diesel Rough Terrain Scissor Lifts
Sinoboom 1323RD (4389RD)
43ft diesel rough-terrain scissor lift, 15.1m working height, 680kg and four people, 50% gradeability with levelling outriggers.
Tell us the job, the dates and the suburb. We will quote the machine and delivery together.
Your download has started
Working height, not platform height
This machine is rated at 13.6 m (about 45 feet). Working height is what a person can reach from the platform, not the height of the platform floor. The difference is roughly two metres, and it is the figure most quotes get wrong.
A spec sheet answers what the machine does. It cannot tell you whether it fits your gate, your ground or your slab, so ask us. Two details is enough.
We will come back to you on the details you gave. Your PDF has downloaded already.
Get a hire quote for this machine
