16ft Electric Vertical Mast Lift Hire in Sydney

Long term hire* from

$100 + GST per day ($110 inc GST)

*Long term rate, on hires of 3 months or more. Rate details

Short-term hire too. A day, a week or a month: get a quote for your dates.

Skyjack SJ16

Working height
6.75 m
Machine width
0.77 m
Platform capacity
227 kg
Platform height
4.75 m
  • IndoorsIndoor use only (manufacturer rating)

16ft vertical mast lift, 6.75m working height, 227kg, up to two people. 0.77m wide and 966kg, the taller of our two straight mast lifts.

Machine availability and transport are confirmed as part of your quote. An enquiry is not a booking.

Price Beat Guarantee. Send us a valid written quote from another Australian hire company for the same or an equivalent machine and we will quote you 5% below its total. We compare the whole quote, including delivery, collection and any fees, not item by item. See the conditions

Long term rate: Vertical Mast Lift rate group

Rate details and conditions

Compact height for tight indoor spaces, with no insurance, environmental or hire levies added.

The machine shown

Working height
6.8 m
Machine width
0.77 m
  • No insurance levy
  • No environmental levy
  • No hire levy

Return fuel-powered equipment with the agreed fuel level. Refuelling and damage charges may apply under your hire agreement.

Any delivery and collection is quoted upfront.

Specification sheetPDF, 219 KB, Skyjack SJ16
Download

Overview

About the 16ft Electric Vertical Mast Lift

The Skyjack SJ16 is the taller of the two Skyjack vertical mast lifts we list: 6.75m working height, 4.75m raised platform height and 227kg capacity, on the same 0.77m wide, 1.37m long chassis as the SJ12. 966kg, zero inside turning radius, 0.41m traversing platform, 30% gradeability when driving stowed. Stows to 1.79m, so it clears most door heads; measure the clear width of each doorway on the route and check any goods lift is rated for its weight and size. Compliant with AS/NZS 1418.10:2011.

Download spec sheet (PDF)

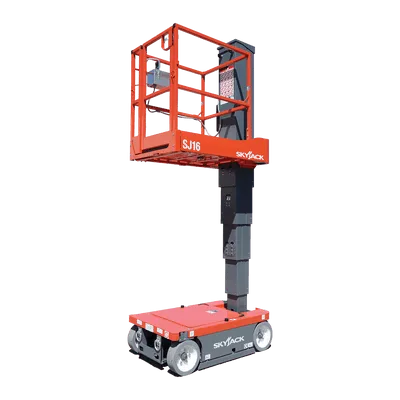

Skyjack SJ16 vertical mast lift working on site

Where it works

Best-fit jobs and sites

  • Higher ceiling and services work in occupied buildings, warehouse and retail maintenance, access where a scissor lift is too heavy or too wide.

Good to confirm: Indoor use only: the Skyjack SJ16 sheet gives no wind rating, so it is not rated for outdoor work. 227kg total platform capacity (up to two people, tools included) on firm, level floors. For outdoor work at a similar height, ask about a scissor lift. An online listing cannot replace a site assessment, so tell us the job and we will confirm suitability.

Decision panel

Will it suit this job?

Seven questions about this job, answered from this machine's verified specifications. All 17 figures are on file.

Manufacturer spec sheet

Reach

6.75 m
Working height
6.75 mWhere your hands work with the operator standing on the platform. Size the machine on this figure.
Platform height
4.75 mThe platform floor at full height, about 2 m below working height.

Access

0.77 m
Machine width
0.77 mNarrower than a typical single door opening (about 0.82 m clear). Many openings are less once the frame and hardware are counted. Measure the narrowest clear opening on the route, with room either side.
Stowed height
1.79 mCheck door headers, ducts and awnings on the route in.
Length
1.37 mRoom to turn in corridors and lifts.
Turning radius
1.4 mTighter is easier in aisles and around racking.

Surface

Indoor / hard standing
Ground it suits
Indoor / hard standingFirm, level ground: slab, sealed yard or compacted hardstand.
Gradeability
30 %The steepest grade it may DRIVE on, stowed. Working on a slope is a separate, smaller limit in the manual.
Outriggers
NoStabilisers the machine sets down before it lifts, where fitted.

Load

227 kg
Platform capacity
227 kg

Environment

Electric
Power
ElectricZero emissions and quiet: suits occupied buildings and after-hours work. Confirm the charging supply on site with us before delivery.
Indoor / outdoor
IndoorAs rated by the manufacturer. Wind ratings still apply outdoors.
Tyres
Non-marking solidNon-marking: safe on finished floors.

Transport

966 kg
Weight
966 kg
Customer pickup
Ask usDelivered on our truck, quoted with the hire. Want to collect it yourself? Ask and we will check the trailer and tow vehicle with you.

Compliance

Vertical mast lift under 11 m, so no high-risk work licence is required in NSW. EWPA Yellow Card accepted competency.
Competency
Vertical mast lift under 11 m, so no high-risk work licence is required in NSW. EWPA Yellow Card accepted competency.No high-risk work licence applies to scissor or vertical lifts in NSW at any height. Site inductions still apply.
Documents
Manufacturer spec sheet on fileThe sheet governs every figure above.

A Confirm mark means the decisive figure is not on this record. Send us the site details and we will answer it before quoting; we never guess a specification.

Specifications

Full specifications

Grouped for quick scanning. A row appears once its figure is verified for this machine; anything not listed here is not yet on the record, and the Fit & access panel above marks it Confirm. The manufacturer spec sheet always takes precedence.

Reach & platform2 specs
Working height
6.75 m
Platform height
4.75 m
Capacity2 specs
Platform capacity
227 kg
Maximum occupants
2
Dimensions4 specs
Overall length
1.37 m
Machine width
0.77 m
Stowed height
1.79 m
Turning radius
1.4 m
Performance4 specs
Gradeability
30 %
Terrain type
Indoor / hard standing
Indoor use
Yes
Outdoor use
No - indoor use only. The Skyjack SJ16 sheet gives no wind rating (the SJ12 sheet gives 12.5 m/s), so it is not rated for outdoor use.
Power & drive3 specs
Power
Electric
Drive type
2WD
Tyre type
Non-marking solid
Machine & transport5 specs
Manufacturer
Skyjack
Model
SJ16
Machine weight
966 kg
Customer pickup
Delivered on our truck, ask us about collecting
Delivery
Quoted by suburb & access

Hire guide

Before and during the hire

Delivery, access, charging and daily checks for this machine. Tap a topic.

Dimensions at a glance

Length 1.37 m Stowed 1.79 m
Stowed size (rails down may differ, so check the spec sheet)
Platform 4.75 m Working 6.75 m
Working height is reach with an operator standing on the platform

The numbers that decide access

Machine width
0.77 m: narrower than a typical single door opening (about 0.82 m clear); measure your narrowest clear opening, frame and hardware included
Stowed height
1.79 m: check door headers, ducts and awnings on the route in

Drawn to scale from this machine's stored specifications. The manufacturer spec sheet (below) governs.

Getting it to site

Swipe

Delivered by us

Quoted by suburb, machine and access. We plan the truck, the unloading space and any overhead hazards before the run, tell us about docks, tight driveways and height limits when you book.

Customer pickup, confirmation required

We deliver this machine on our truck, quoted together with the hire. Keen to collect it yourself? Ask the team and we will check whether a trailer combination suits it.

Delivery, access and running

What we need from you, and what we take care of.

Swipe

Delivery

Quoted by suburb, site access and transport requirements, the machine and the delivery are quoted together for your dates. Delivered from our Western Sydney depot across Sydney, including Central Coast, Parramatta, Lidcombe and Homebush and Sydney CBD.

Tightest access width

Tell us the narrowest gate, doorway or gap the machine must pass through and we will confirm the fit before it is loaded.

Licence and competency

Vertical mast lift under 11 m, so no high-risk work licence is required in NSW. EWPA Yellow Card accepted competency.

Hire period

Hire runs from delivery or pickup until off-hire is confirmed. Rates are quoted for your dates, suburb and machine together, see our hire terms for responsibilities during the hire.

Not sure it will fit?

Send your suburb, your dates and the tightest access width. We will confirm the machine and quote the delivery with it.

Charging this machine

Battery electric: charge it at the end of every shift.

Swipe

Charging supply

The charger supply for this machine is confirmed with your quote. Tell us what power is available where it will park overnight (and whether it is temporary site power), and we check it matches before delivery.

Charge it every night

A full charge from flat takes most of a night. How long a charge lasts on the day depends on battery condition, drive distance, lift cycles and load, so there is no fixed runtime: tell us if the job runs long shifts.

Keeping it charged on site

  • Confirm a live, accessible power point near where the machine parks overnight. A machine left away from power starts tomorrow flat.
  • Plug in at the end of every shift, not “when it gets low”. Topping up at breaks helps on heavy days.
  • Charge in a ventilated area and keep the charger and lead dry.
  • Zero emissions and quiet running, so it suits indoor, occupied and after-hours work.

Pre-start checks, every day

Every Equip Hire machine is function-tested before it leaves the yard. The operator still checks it before each shift, tick these off as you go.

Swipe

1

Walk around

0/4
2

Power on

0/3
3

Function test

0/3

Found a fault?

Tag it out and call us on 0472 721 234. Never operate a machine with a known fault, we will repair or swap it.

What counts as the record

Ticking here is a memory aid on your phone, nothing is stored. The machine’s own logbook and pre-start check sheet are the record. Based on the manufacturer’s daily check requirements and SafeWork NSW guidance for this kind of equipment.

Before it arrives

Five minutes of checking here is what keeps a delivery from becoming a return trip.

Swipe

1

Measure the route, not the door

Every gate, corridor and lift on the way to the work area. Handles, hinges, bollards and stored materials all eat clearance.

2

Confirm the floor

A ground-bearing slab usually suits it. Suspended slabs, mezzanines and raised floors need the wheel loads checked against the floor rating.

3

Clear the work zone

Overhead services, sprinkler heads and light fittings at working height, and an exclusion zone for people below.

4

Make delivery space

Room for the truck to stop and unload safely. Tell us about docks, driveways and height limits when you book.

5

Find the power point

A live outlet near overnight parking so every day starts on a full charge.

Mistakes we see weekly

The things that most often send a machine back or hold up a job.

Swipe

Booking on ceiling height

Measure to the actual task height, then choose the machine. Nothing added “just in case”.

Using the nominal door size

An 820 mm door leaf is not 820 mm of clear opening once the stop and hardware are counted. Measure the gap.

Assuming it can cross a bit of lawn

Wheeled machines rut turf and bog in soft ground. Say so when you book: a tracked machine may suit, after the ground is checked.

Leaving inductions to delivery morning

Shopping centres and managed sites need the paperwork approved before the truck arrives.

Documents

Manufacturer documents for this model. Swipe or scroll sideways to see them all.

Manufacturer specification sheetPDF, 219 KB, Skyjack SJ16
Download

Questions about hiring this machine

How high can the Skyjack SJ16 reach?

Working height is 6.8 m and the platform floor rises to 4.8 m. Working height is the platform height plus about 2 m for a person standing on the platform, which is how hire sizes are normally stated.

How wide is it, and will it fit through my doorway?

It is 0.77 m wide and 1.37 m long when stowed. We look for at least 50 mm of clearance beyond the machine width at each opening. Measure the narrowest point of the whole route, not just the final doorway: gates, door frames, corridors, lift cars and the turn in from a corridor, which needs more room than a straight approach.

What is its travel height?

Stowed (travel) height is 1.79 m. Check headroom along the route: door heads, roller doors, ducts, sprinklers and ramps.

How much weight can the platform carry?

Rated platform capacity is 227 kg, with up to 2 people. People, tools and materials all count.

Can it reach over an obstacle?

A vertical mast lift goes straight up. To work over an awning, a roof edge or plant, look at articulating boom lifts, which go up and out.

What surfaces can it be used on?

It is built for firm, level, hard surfaces: concrete floors, sealed paving and slabs. It is not for grass, gravel, mud or uneven ground. Check the floor or ground can carry its weight (see below).

Is it suitable indoors or outdoors?

It is rated for indoor use only and must not be used outdoors or in wind. Electric power means no exhaust indoors, but electric power alone does not make a machine rated for outdoor use.

Can it work on a slope?

Gradeability of 30% is the steepest slope it can drive up while stowed. That is not permission to raise the platform on a slope: elevated work needs ground within the manufacturer's tilt limit, and the tilt alarm stops elevation beyond it.

How is it charged?

It runs on batteries. You need a standard power outlet near where it is parked, and it should be charged at the end of each day. Ask us if your site power is limited or temporary.

How long does a charge last?

Runtime depends on how far it drives, how often it lifts, the load, temperature and battery age, so there is no fixed number of hours. Plan to charge it every night, and tell us if your work involves a lot of driving between work areas.

How heavy is it, and can my floor take it?

It weighs about 966 kg. Weight alone does not show whether a floor can take it: suspended slabs, mezzanines, pits, pavers and lift cars need their rating checked against the wheel or track loads in the manufacturer's data, by someone able to assess the structure.

Can it be delivered, or can I collect it?

Delivery is from our Western Sydney depot. Delivery is quoted with the machine for your suburb, site access and hire dates. We deliver it on our truck. Keen to collect it yourself? Ask us and we will check the trailer and tow vehicle with you.

For delivery, the truck needs a firm, clear area to unload close to the work, and someone on site to sign for the machine.

What does the hire rate cover?
  • $100 + GST ($110 inc GST) per day, for hires of 3 months or more

Transport is quoted separately for your suburb and site. A longer-term rate applies only when the hire runs for its minimum period; a shorter hire is quoted at the rate for its actual length.

Do I need a licence to operate it in NSW?

No high risk work licence is needed for a vertical mast lift in NSW. Operators must still be trained and competent for this type of machine and familiarised with this model before use, and many sites ask for an industry card such as the EWPA Yellow Card plus their own induction. SafeWork NSW licence guidance.

What do I need to get a quote?

The machine, your dates, the site suburb and anything that limits access: the narrowest opening, headroom, ground type and how high the work is. The team confirms availability for your dates and that the machine suits the site, then sends the quote with delivery. Nothing is booked until we confirm.

How do I extend the hire or arrange collection?

A hire can be extended. Call or email the team with your hire reference and the new finish date, and earlier is better because the machine may be committed to another job. Extra time is confirmed with you, and the rate for the longer period is confirmed with it: a change to the booking can mean the rate is revised, a minimum hire applies, or the correct rate for the actual hire period is used.

Hire charges run until the machine is properly off-hired with Equip Hire and is available for collection, clean, accessible and safe to collect. To off-hire you contact Equip Hire directly and get an off-hire number or confirmation back. Stopping work, leaving the machine on site, telling another contractor or assuming we know the job is finished does not end the hire. Charges stop at the confirmed off-hire, not on the day the truck happens to arrive, but they can continue if the machine is not accessible or ready when we come for it.

When would a different machine suit better?

You might also consider

Skyjack SJ12 12ft vertical mast lift raised to working height Hire
  • 5.65 mWorking height
  • 0.77 mOverall width
  • 227 kgPlatform
  • 782 kgMachine weight

Vertical Mast Lifts

12ft Electric Vertical Mast Lift

Skyjack SJ12

Indoors and outdoorsBest indoors

Short-term hireQuoted for your dates

Long term hire*From $100/day + GST

12ft vertical mast lift, 5.65m working height, 227kg, up to two people. 0.77m wide and 782kg, for tight indoor access and lighter floors.

Mast of the Haulotte Star 10 26ft vertical mast lift at full extension Hire
  • 10 mWorking height
  • 1 mOverall width
  • 200 kgPlatform
  • 2,677 kgMachine weight

Vertical Mast Lifts

26ft Electric Vertical Mast Lift Haulotte Star 10

Haulotte Star 10

Indoors and outdoorsBest indoors

Short-term hireQuoted for your dates

Long term hire*From $100/day + GST

26ft vertical mast lift with a 3m jib, 10m working height, 200kg, zero tail swing for work in confined areas.

LGMG M0810JE vertical mast lift, three-quarter view Hire
  • 10 mWorking height
  • 1 mOverall width
  • 200 kgPlatform
  • 2,720 kgMachine weight

Vertical Mast Lifts

26ft Electric Vertical Mast Lift LGMG M0810JE

LGMG M0810JE

Indoors and outdoorsBest indoors

Short-term hireQuoted for your dates

Long term hire*From $100/day + GST

26ft vertical mast lift with a jib: 8m platform height and 10m (33ft) working height, 3.2m horizontal outreach, zero tail swing and a 1m wide chassis for indoor up-and-over work.

How the SJ16 compares

Of the similar machines we hire, the SJ16 is the highest reach at 6.75 m working height.

MachineWorking heightWidthWeightPlatform loadPower
SJ16 16ft Vertical Mast Lift SJ16 (this one) 6.75 m0.77 m 966 kg227 kg Electric
SJ12 12ft Vertical Mast Lift SJ12 5.65 m0.77 m 782 kg227 kg Electric

Get a quote for the 16ft Electric Vertical Mast Lift

6.75 m working height, 0.77 m wide, 227 kg capacity. Tell us the job, the dates and the suburb. We will quote the machine and delivery together.

CallGet Hire Quote
