Indoor / hard standing
Haulotte Star 10 Vertical Mast Lift
Haulotte Star 10
26ft vertical mast lift with a 3m jib, 10m working height, 200kg — zero tail swing for work in confined areas.
Working height
10 m
Platform height
8 m
Power
Electric
Capacity
200
Specification sheetDownload Specification sheet
Overview
About the Haulotte Star 10 Vertical Mast Lift

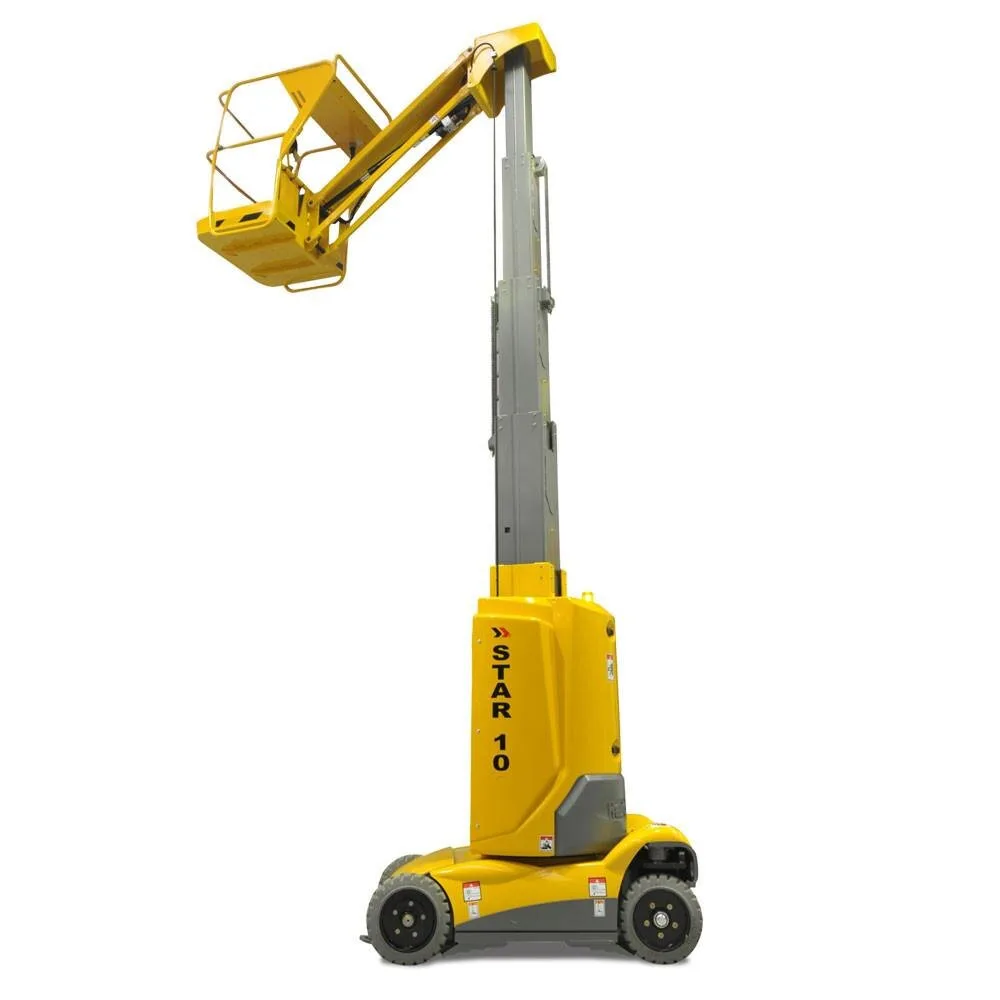

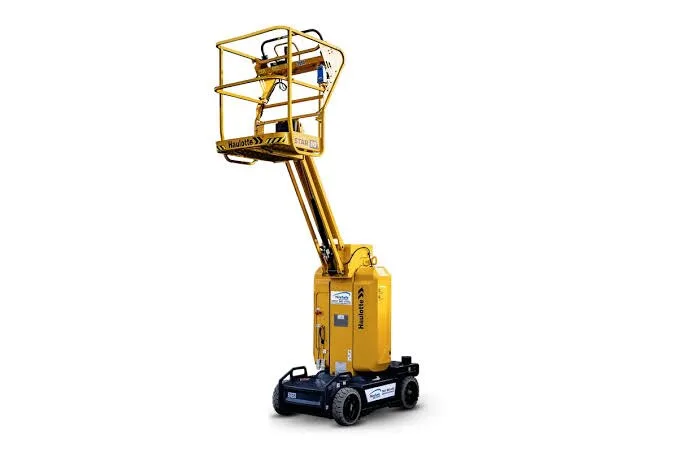

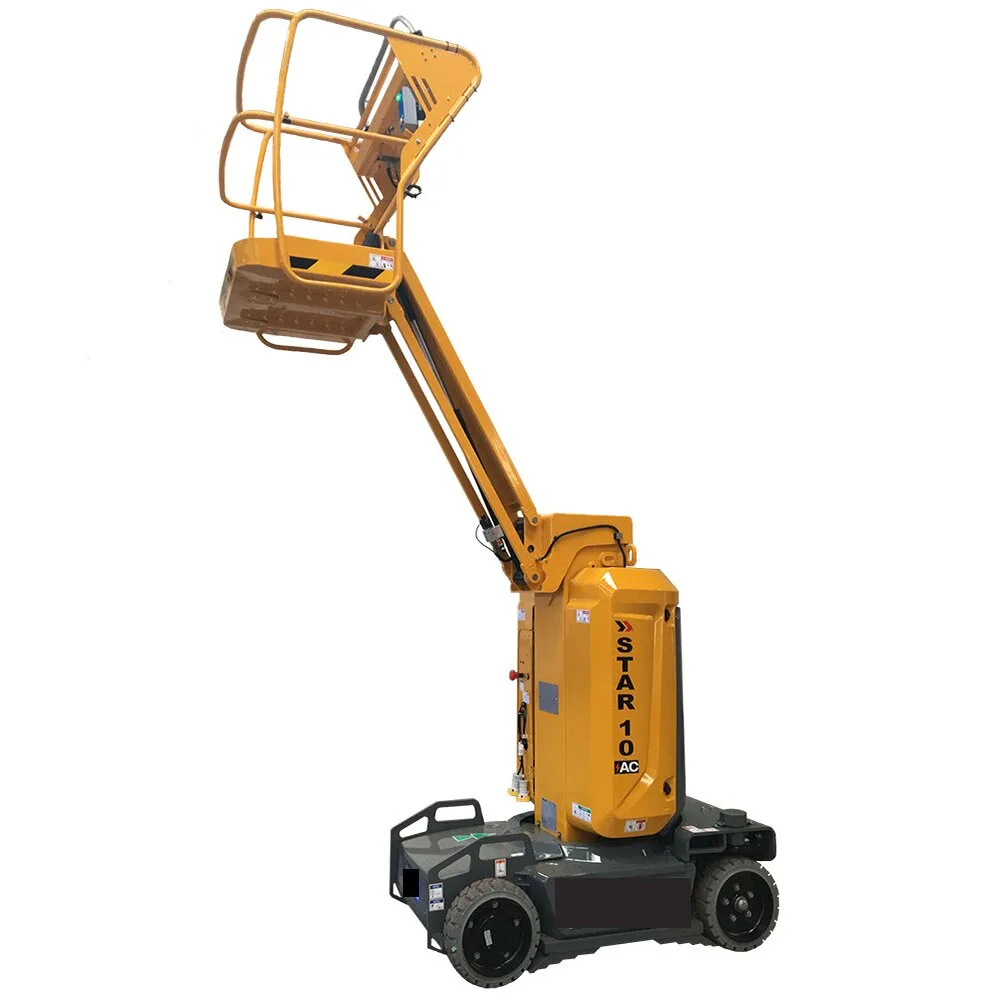

The Haulotte Star 10 is a vertical mast lift with a jib: 10m working height, 8m platform height and a 3m horizontal outreach from the vertical jib, which rotates through 130 degrees (+70 / -60). Zero tail swing means it can work hard against a wall or in a corner without the chassis swinging into anything. 200kg platform, 0.78 x 0.98m basket, 2,677kg, 25% gradeability to climb truck ramps, 24V brushless AC drive on non-marking tyres with a 250Ah traction battery and automatic centralised water filling.
Where it works
Best-fit jobs and sites
- Confined internal areas, plant rooms and corridors, work needing outreach as well as height without a full boom lift, over-and-around access in occupied buildings.
Good to confirm: 200kg platform. Some dimensions are published only as a diagram on the manufacturer sheet — confirm transport width and length against the machine before booking a truck. An online listing cannot replace a site assessment, so tell us the job and we will confirm suitability.
Specifications
Full specifications
Grouped for quick scanning — a row appears once its figure is verified for this machine. The manufacturer spec sheet always takes precedence.
Reach & platform2 specs
- Working height
- 10 m
- Platform height
- 8 m
Capacity1 spec
- Platform capacity
- 200
Performance4 specs
- Gradeability
- 25
- Terrain type
- Indoor / hard standing
- Indoor use
- Yes
- Outdoor use
- Limited
Power & drive3 specs
- Power source
- Electric
- Battery
- 24V — 250Ah traction batteries, smart CAN charger
- Tyre type
- Non-marking solid
Machine & transport5 specs
- Manufacturer
- Haulotte
- Model
- Star 10
- Machine weight
- 2677
- Customer pickup
- Delivery only
- Delivery
- Quoted by suburb & access
Delivery, access and running
Delivery is quoted by suburb, site access and transport requirements. Tell us the tightest access width on site if the machine must pass through gates, doorways or between structures.
Licence and competency: Vertical mast lift under 11m — no high-risk work licence required in NSW; EWPA Yellow Card accepted competency.
Hire period: Hire runs from delivery or pickup until off-hire is confirmed. Rates are quoted for your dates, suburb and machine together; see our hire terms for responsibilities during the hire.
Charging this machine
- Batteries
- 24V — 250Ah traction batteries, smart CAN charger
- Our fleet guidance
- Charge overnight (about 8 hours) from a standard outlet for a full day's work. Runtime depends on battery condition, drive distance and lift cycles. Ask us if your job runs long shifts.
- Confirm a live, accessible power outlet near where the machine parks each night. A machine left away from power starts tomorrow flat.
- Plug in at the end of every shift, not "when it gets low"; opportunity charging at breaks helps on heavy days.
- Charge in a ventilated area and keep the charger connections dry.
Pre-start checks, every day
Every Equip Hire machine is function-tested before delivery, and every operator still checks the machine before each shift. This is the baseline we use; the machine's own logbook and check sheet govern.
Walk around
- Tyres, wheels and structure: damage, cracks, leaks
- Scissor stack / boom, pins and hoses: no visible damage or hydraulic leaks
- Decals, capacity plate and rails in place; gates close properly
- Work area: overhead power lines, holes, slopes, other traffic
Power on
- Battery state of charge: enough for the shift
- Ground and platform controls both operate correctly
- Emergency stop and horn work from both stations
Function test
- Raise, lower and drive at low height before working
- Emergency lowering: know where it is and that it works
- Tilt / overload alarms not showing faults
Any fault: tag it out and call us on 0472 721 234. Do not operate a machine with a known fault. Based on manufacturer pre-start requirements and SafeWork NSW guidance.
Before it arrives
- Measure the route, not the door. Every gate, corridor and lift on the way to the work area: handles, hinges, bollards and stored materials all eat clearance.
- Confirm the floor. Ground-bearing slab is fine; suspended slabs, mezzanines and raised floors need the wheel loads checked against the floor rating.
- Clear the work zone. Overhead services, sprinkler heads and light fittings at working height; exclusion for people below.
- Delivery space. Room for the truck to stop and unload safely. Tell us about docks, driveways and height limits when you book.
- Power point. A live outlet near overnight parking, so every day starts charged.
Mistakes we see weekly
- Booking on ceiling height instead of the actual task height. Measure to the work, then add nothing "just in case".
- Quoting the nominal door size instead of the clear opening. An 820 mm door leaf are not 820 mm once the door stop is counted.
- Assuming the machine can cross "a bit of lawn". Wheeled machines rut turf and bog in soft ground; say so and we'll send tracks.
- Leaving induction and permit requirements to delivery morning. Shopping centres and managed sites need paperwork before the truck arrives.
