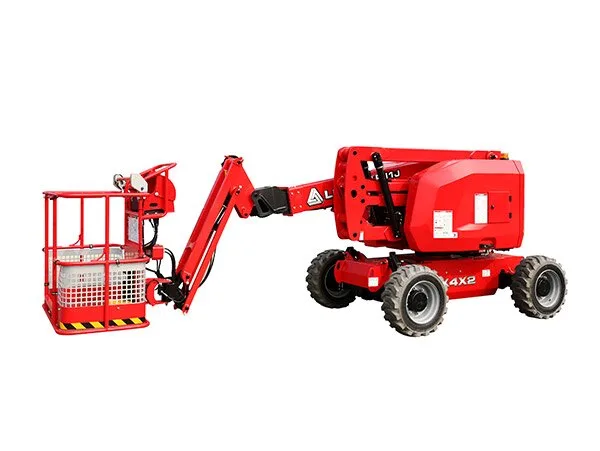

About the 34ft Articulating Diesel Boom Lift LGMG AR11J
The LGMG AR11J is a 34ft class diesel articulating (knuckle) boom lift: 12.75 m working height, 10.75 m platform height, 6.78 m horizontal outreach and 5.32 m up-and-over clearance. Four-wheel drive with 45% gradeability stowed, 0.19 m ground clearance, an oscillating axle and an auto-levelling platform. 1.85 m wide, 5.77 m long and 2.06 m high stowed, 5,400 kg, with a 355 degree turntable and a 12.5 m/s maximum wind rating.
What is it for?
Work the machine cannot stand underneath: reaching over a roof, an awning, a garden bed, a fence or a lower structure, then back down to the work face. Typical jobs are facades and signage, gutters and roof edges behind obstructions, tree and vegetation work, and steel and services on industrial sites. It handles unsealed site ground better than any scissor lift we carry.
Typical jobs for the AR11J
Examples of the work this boom is hired for across Sydney, the Central Coast and the Southern Highlands. They are examples, not records of completed jobs. We check the reach and the setup point before we confirm the machine.
Sign replacement above an entrance awning, Homebush
The awning stops you standing under the sign, so the basket goes up and over it from an approved external work area. Keep pedestrians and vehicles clear of the work zone and the tail swing.
Tenant sign over a landscaped setback, Macquarie Park
What decides it is the horizontal distance from the setup point to the sign, including the garden beds in between. Send the height and outreach together.
Fascia painting over an awning, North Epping
An awning or setback stops a scissor lift getting under the work. Check the setup area, ground condition and overhead hazards.
Shopfront sign, Campsie
If the machine needs the footpath or road, the approval from the relevant authority has to be in place before delivery day.
Facade and sign repair, Newtown
Limited street space and overhead services make the delivery and work-zone plan as important as the reach.
Canopy and building repairs, Moss Vale and the Central Coast
Include the height, the distance from the setup area and the ground details so transport to the address is quoted with the hire.
Check these before you book
- Height, outreach and clearance together. Full height and full outreach are not available at the same time. Send all three; see how to read a boom lift reach chart.
- Ground. 5,400 kg. Soft ground, fresh fill, pit lids and suspended slabs need checking first.
- Tail swing. The counterweight sweeps behind the machine when it slews; keep that arc clear.
- Licence. A WP class high risk work licence is required in NSW for this machine. See EWP licences in NSW.
- Harness. Required, clipped to the platform anchor point.
- Delivery. A truck delivery, not a trailer pickup: delivery and site access.
Other boom lifts
For electric power and narrow access, the Zoomlion ZA10RJE. For the same class from Genie, the Genie Z-34/22. Compare all knuckle boom lifts and read the boom lift hire guide and when to hire a knuckle boom lift.
This machine is also for sale. Get a hire quote with the height, the outreach, what it has to clear and the suburb, or call 0472 721 234.
